NVIDIA NVS 310 by PNY 512MB DDR3 PCI Express Gen 2 x16 DisplayPort 1.2 Multi-Display Professional Graphics Board, VCNVS310DP-PB Reviews Reviews| Categories | Best Graphic Cards 2013 |
| Product Code | B008B6ONWQ |
| Product Rating |  |
| Price | $107.62 |
| Where To Buy | See More Details |
| Customer Review | See More Reviews |
Product Features
- Chipset: NVIDIA NVS 310
- Video Memory: 512MB GDDR3
- Memory Interface: 64-bit
- Bus: PCI-Express 2.0 x16
- Max. Resolution: 2560 x 1600
- Connectors: 2x Display Port
Product Description
From the Manufacturer
Overview

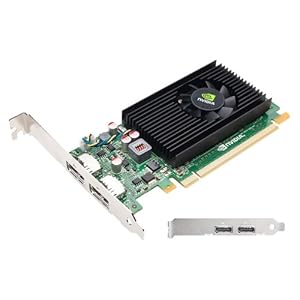

NVIDIA NVS 310 by PNY x16 for DisplayPort – The Standard for Multi-Display Business Graphics
Boost your enterprise's productivity with the NVIDIA NVS 310 by PNY dual-display professional graphics solution. This graphics board provides a reliable hardware and software platform to enable fast, cost-effective integration, deployment, and support across large enterprises. Each NVS 310 board features DisplayPort 1.2, NVIDIA Mosaic Technology, and NVIDIA NVIEW desktop management software, and can drive up to two 30-bit displays at resolutions up to 2560 x 1600 at 60Hz. This allows business professionals to maximize productivity by increasing their desktop real estate and leveraging advanced application-management tools. Plus, every NVS 310 is tested on leading business applications and designed with the ideal balance of performance and power to meet the needs of today's most demanding business user.
NVIDIA power management technology reduces overall system energy costs. It intelligently adapts the total power utilization of the graphics subsystem based on the applications being run by the end user. This power optimized design helps reduce Total Cost of Ownership (TCO) and increases reliability.
PNY provides unsurpassed service and commitment to its professional graphics customers offering: pre and post-sales support, dedicated Quadro Field Application engineers, and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, driver CD and documentation to ensure a quick and successful install.
| Frame Buffer Memory | 512 MB DDR3 |
| Memory Interface | 64-bit |
| Memory Bandwidth | 14.0 GB/s |
| CUDA parallel processing cores | 48 |
| Graphics Bus | PCI Express 2.0 x16 |
| Max Power Consumption | 19.5 W |
| Energy Star Compliant | Yes |
| Physical Dimensions | SFF 2.713" H x 5.70" L Single Slot |
| Low Profile Form Factor | Yes |
| Number of Displays Supported | 2 |
| Display Connectors | DisplayPort 1.2 (2) |
| Maximum DisplayPort Resolution | 2560 x 1600 at 60Hz |
| PCIe High Definition Audio Support | Yes |
| HDCP Support | Yes |
| HDMI 1.4a with Audio | Yes, via 3rd Party Adapters |
| Graphics APIs | Shader Model 5.0, OpenGL 4.1, DirectX 11 |
| Compute APIs | CUDA, DirectCompute and OpenCL |
| NVIEW Enabled | Yes |
| Mosaic Mode Enabled | Yes |
| Warranty | 3 Year Warranty |
| PNY Part # | VCNVS310DP-PB |
Features and Benefits
Fast 512 MB DDR3 graphics memory
Delivers high throughput to simultaneously play stunning HD video on each connected display.
Intelligent Power Management
NVIDIA Power Management technology reduces overall system energy costs. It intelligently adapts the total power utilization of the graphics subsystem based on the applications being run by the end user. This power optimized design helps reduce Total Cost of Ownership (TCO) and increase reliability.
NVIDIA CUDA
48 CUDA GPU parallel computing cores compatible with all CUDA accelerated applications. NVIDIA CUDA provides a development environment and tool suite that unleashes new capabilities to solve various visualization challenges.
Low-Profile and Flexible Form Factor
Simplifies IT administration and deployment throughout an enterprise. Regardless of desktop system (standard tower PC. workstation, small form factor system) or the display type (LCD, DLP, plasma) NVS 310 has the ability to fit into any existing installations without being disruptive.
Ultra-Quiet Fansink
Whisper-quiet 22 dba idle, 22.4 dba maximum at room temperature.
Dual DisplayPort 1.2 Connectors
Supports up to two 2560 x 1600 digital displays with 30-bit color through native dual DisplayPort connectors. Also incorporates DisplayPort 1.2 multi-streaming technology to daisy chain displays with next-generation DisplayPort 1.2 monitors or hubs.
NVIDIA High Definition Video Technology
NVIDIA high definition video technology is the combination of high-definition video processors and software that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for SD and HD video content. Features include, high-quality scaling, spatial temporal de-interlacing, inverse telecine and high quality HD video playback - with low CPU utilization and power consumption.
NVIEW Advanced Desktop Software
The NVIEW Advanced Desktop Software delivers maximum flexibility for single-large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.
Multi-Display Experience with NVIDIA Mosaic Technology
Mosaic Technology enables seamless taskbar spanning as well as transparent scaling of any application across up to 8 displays. Works over multiple displays or one ultra-high resolution display using a single or multiple NVS graphics cards (Windows 7 and Linux).
Unified Driver Architecture (UDA)
Part of the NVIDIA Forceware unified software environment (USE). The NVIDIA UDA guarantees forward and backward compatibility with software drivers. Simplifies upgrading to a new NVIDIA product because the latest driver supports all current NVIDIA products.
Microsoft Windows 7 Support
Windows 7 operating system marks a dramatic improvement in the way the OS takes advantage of the graphics processing unit (GPU) to provide a more compelling user experience. By taking advantage of the GPU for both graphics and computing, Windows 7 not only makes today's PCs more visual and more interactive but also ensures that they have the speed and responsiveness customers want.
Compatible with Industry Leading Applications
Extensive compatibility testing ensures that NVS 310 provides a stable and reliable graphics platform for industry leading business applications including Microsoft Office, Adobe Acrobat, Lotus Notes, OpenText Exceed and Exceed onDemand, TradeStation, Reuters Financial Software, pcAnywhere, Internet Explorer 9, Firefox 4, and many other essential business and enterprise applications.
Package Contains
- NVIDIA NVS 310 by PNY x16 PCIe graphics board
- Full height bracket (attached to card)
- Low profile bracket (unattached)
- Driver CD (Windows 7, Vista, XP) with PDF documentation
- Printed Quick Install Guide
Minimum System Requirements
- Windows 7, Vista, XP SP3, Linux, or Solaris
- PCIe x16 expansion slot
- 1GB or more of system memory, 2GB recommended
- 200MB of available disk space for full driver installation
- Blu-ray, DVD-ROM or CD-ROM drive
- DisplayPort compatible display(s)
